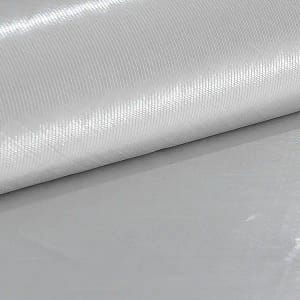

Multiaxial fiberglass fabric is a kind of multi-axis and multi-layered reinforcements. The number of layers, orientation, fabric weight and varies based on different appilcations and project requirements. The fabric can be produced using multiple axis(0˚, 90˚, +45˚, -45˚), or combined with chopped strand mat layer.It’s primarily used for pultrusion,hand lay-up,filament winding and RTM process. The final products can be used in wind energy,marine, ship building, automotive, aerospace, etc.
Properties
- Increased strength, reduced product weight and better surface finish；
- Orientated unidirectional layers are structurally more efficient；
- Much easier and quicker to wet-out than woven fabrics;
- Available in very heavy weights allowing faster deposition rates；

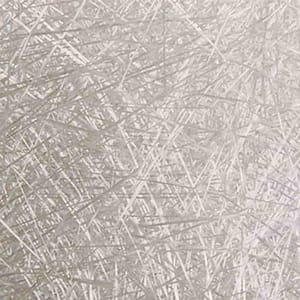

- Binderless CSM can be added to further cut down on lay-up time and increase speed of wet-out；
- The multiaxial fiberglass fabric provides high strength on multiaxial directions, which makes the final products perform excellent properties;
Specifications
| Specification | Weight(gsm) | 0˚(gsm) | 90˚(gsm) | 45˚(gsm) | -45˚(gsm) | CSM(gsm) | Stitching Yarn(gsm) |
| MAX550 | 550 | 420 | 120 | 10 | |||
| MAX435 | 435 | 200 | 225 | 10 | |||
| MAX407 | 407 | 200 | 200 | 7 | |||
| MAX609 | 609 | 301 | 301 | 7 | |||
| MAX832 | 832 | 300 | 300 | 225 | 7 | ||
| MAX910 | 910 | 336 | 264 | 300 | 10 | ||
| MAX1110 | 1110 | 420 | 380 | 300 | 10 | ||
| MAX1510 | 1510 | 672 | 528 | 300 | 10 | ||
| MAX1214 | 1214 | 567 | 320 | 320 | 7 | ||
| MAX808 | 808 | 283 | 118 | 200 | 200 | 7 | |
| MAX1207 | 1207 | 576 | 124 | 250 | 7 |
